New: How to Install OSMC and Kodi 17 on Raspberry Pi

How to Install OSMC and Kodi 17 on Raspberry Pi

With the guide below you will be able to install Kodi 17 and OSMC on your Raspberry Pi. This should work on Pi Zero, 1, 2 & 3. In this guide I will be using the Pi 3 but it is basically the same process for all.

div style="display: block; height: 280px; margin-bottom: 29px; margin-left: auto; margin-right: auto; margin-top: -12px; width: 682px;">



Requirements:

  • Raspberry Pi
  • Power Source for Pi
  • A box for your Pi to keep it safe
  • Micro SD Card (16GB+)
  • Micro SD Card Adaptor
  • Latest version of OSMC on your computer (macOS/Windows/Linux)
div style="display: block; height: 280px; margin-bottom: 29px; margin-left: auto; margin-right: auto; margin-top: -12px; width: 682px;">


  • HDMI Cable
  • USB Keyboard or remote control with wireless dongle (you can get these dirt cheap on eBay or Amazon).
div style="display: block; height: 280px; margin-bottom: 29px; margin-left: auto; margin-right: auto; margin-top: -12px; width: 682px;">



  • Assemble your Pi and Box and insert your bluetooth dongle if you are using a bluetooth keyboard so it is ready.
  • Insert your SD Card into the SD Card Adaptor and insert it into your computer. Format it if necessary
  • Go to the OSMC Download site and download the OSMC that is applicable to you
How to Install OSMC and Kodi 17 on Raspberry Pi
div style="display: block; height: 280px; margin-bottom: 29px; margin-left: auto; margin-right: auto; margin-top: -12px; width: 682px;">


  • Install the OSMC file you have just downloaded on your computer
  • Open the OSMC Installer and then select your language (only English is showing for me, not sure if that is because it is my default system language or because that is all that is available) and the type of device you will be installing on. Then click the Continue Arrow
How to Install OSMC and Kodi 17 on Raspberry Pi
  • In the next Window choose the latest version which at the time of writing is 2017.01-1 and click the Continue Arrow Again
How to Install OSMC and Kodi 17 on Raspberry Pi
  • As we are using an SD Card select SD Card in the next window and click the Continue Arrow Again
How to Install OSMC and Kodi 17 on Raspberry Pi
  • In the next screen you have the choice of Wi-Fi/Ethernet/Manual networking. If you are going to connect the device via wifi Select Wireless, if using ethernet then select Wired if you want to set it up manually then select Configure Network Manually and click the Continue Arrow Again
How to Install OSMC and Kodi 17 on Raspberry Pi
div style="display: block; height: 280px; margin-bottom: 29px; margin-left: auto; margin-right: auto; margin-top: -12px; width: 682px;">


  • I am using Wi-Fi so in the next screen I will have to enter my network encryption, SSID and password. If you select Wired then we we will get to the screen after the screen that is below so skip this image and move on to that step. If you select setup manually you will have to enter IP, Mask, GW, DNS. and click the Continue Arrow Again
How to Install OSMC and Kodi 17 on Raspberry Pi
  • In the next screen you will be asked where you want to install OSMC. Select your SD Card and click the Continue Arrow Again
How to Install OSMC and Kodi 17 on Raspberry Pi
  • Accept the End User License Agreement
  • OSMC will now start to download and when it finishes it will begin to install
How to Install OSMC and Kodi 17 on Raspberry Pi
  • Before it installs you will be asked "Are you sure you want to install OSMC..." select Yes
How to Install OSMC and Kodi 17 on Raspberry Pi

  • OSMC will begin to install on your SD Card

div style="display: block; height: 280px; margin-bottom: 29px; margin-left: auto; margin-right: auto; margin-top: -12px; width: 682px;">


How to Install OSMC and Kodi 17 on Raspberry Pi
  • When it has finished click Quit
How to Install OSMC and Kodi 17 on Raspberry Pi
  • Eject your SD Card
  • Plug your Pi Box in
  • Insert the SD Card in the SD Card slot on your Pi
  • OSMC will now start to install on your Pi. Kodi 16.1 will probably be the version that it currently installed. But keep following the guide and I'll show you how to update to Kodi Krypton 17
How to Install OSMC and Kodi 17 on Raspberry Pi
div style="display: block; height: 280px; margin-bottom: 29px; margin-left: auto; margin-right: auto; margin-top: -12px; width: 682px;">


  • You will have to wait a few minutes for the process to finish. When it does you will be asked to choose your language and then your time zone.
How to Install OSMC and Kodi 17 on Raspberry Pi
  • You will be asked to give your device a name. If you are only going to have 1 OSMC device on your network just leave it as it is and select Accept
How to Install OSMC and Kodi 17 on Raspberry Pi
  • Enable SSH service (enabled by default) if you will be using your terminal to SSH into your device and select Accept
  • Click Continue when the license blurb appears
How to Install OSMC and Kodi 17 on Raspberry Pi
  • You will now see the following screen where you can choose the appearance. For the purpose of this guide we will choose Appearance > OSMC. When you have updated to 17 you can change that
How to Install OSMC and Kodi 17 on Raspberry Pi

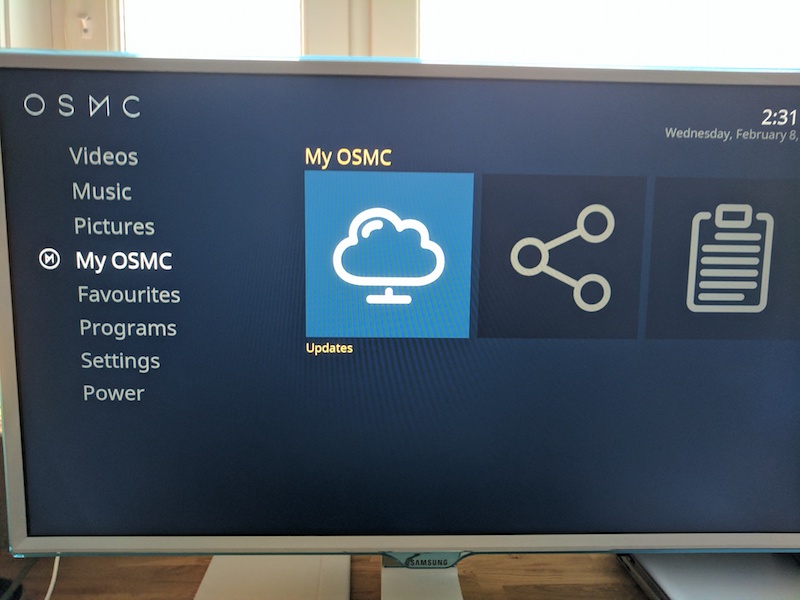

  • When the OSMC screen loads select My OSMC > Updates

div style="display: block; height: 280px; margin-bottom: 29px; margin-left: auto; margin-right: auto; margin-top: -12px; width: 682px;">


How to Install OSMC and Kodi 17 on Raspberry Pi
  • Select Manual Controls > Scan for updates now
How to Install OSMC and Kodi 17 on Raspberry Pi
  • The updater will start scanning
How to Install OSMC and Kodi 17 on Raspberry Pi
div style="display: block; height: 280px; margin-bottom: 29px; margin-left: auto; margin-right: auto; margin-top: -12px; width: 682px;">


  • You will now see a message saying an update is available. Select Yes
How to Install OSMC and Kodi 17 on Raspberry Pi
  • The update will begin to install
How to Install OSMC and Kodi 17 on Raspberry Pi
  • You will now see the following screen which is OSMC running Kodi Krypton 17
How to Install OSMC and Kodi 17 on Raspberry Pi

Check out my other Kodi posts; you'll find plenty to improve your Kodi experience
